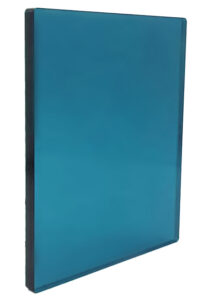

Ruby Laser Protective Acrylic Sheet, Light Blue

REQUEST CODE

$2.11 sq. in.

SKU ALS-RBY-0.140 Category

Ruby is an Acrylic laser safety window offering protection primarily from Ruby laser, diode 2, gold vapor, helium neon (HeNe), krypton at 647 nm and 676 nm, and Photodynamic therapy (PDT) protection.

Laser windows can be custom cut, molded, and drilled to your CAD specifications for use in enclosures or machine windows. This laser safety window may provide protection from other laser wavelengths not listed. Please see Product Information for additional information about this filter or contact us.

Filter specifications can be permanently engraved on the window. Custom sizes and shapes are available. This laser safety viewing window meets and/or exceeds US ANSI Z136 standards for use with lasers. Plus, this laser protective acrylic sheet has a 0.140″ Thickness.

Maximum Sheet Size 24″ X 36″

OD 5+ @190-375nm
OD 2+ @630-730nm
OD 3+ @650-720nm
OD 5+ @670-710nm
OD 6+ @694nm
OD 5+ @10600nm

VLT = 45%

For more options, check our Laser Windows collection.

Total Area (sq. in.)
Product Price

Description

Ruby is an Acrylic laser safety window offering protection primarily from Ruby laser, diode 2, gold vapor, helium neon (HeNe), krypton at 647 nm and 676 nm, and Photodynamic therapy (PDT) protection.

Laser windows can be custom cut, molded, and drilled to your CAD specifications for use in enclosures or machine windows. This laser safety window may provide protection from other laser wavelengths not listed. Please see Product Information for additional information about this filter or contact us.

Filter specifications can be permanently engraved on the window. Custom sizes and shapes are available. This laser safety viewing window meets and/or exceeds US ANSI Z136 standards for use with lasers. Plus, this laser protective acrylic sheet has a 0.140″ Thickness.

Maximum Sheet Size 24″ X 36″

OD 5+ @190-375nm
OD 2+ @630-730nm
OD 3+ @650-720nm
OD 5+ @670-710nm
OD 6+ @694nm
OD 5+ @10600nm

VLT = 45%

For more options, check our Laser Windows collection.

Additional information

Weight 32 oz
Dimensions 12 × 8 × 8 in
Brand

Phillips Safety

Product Type

Laser Protective Acrylic Sheet

Color

Light Blue

Thickness

0.140″

Safety Standards

US ANSI Z136

VLT

45%
