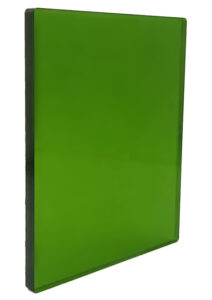

830 Laser Protective Acrylic Sheet, Dark Green

REQUEST CODE

$1.43 sq. in.

SKU ALS-DYAG-0.150 Category

The 830 DYAG is an acrylic laser safety window offering protection primarily from Full IR protection for alexandrite, also broad band A, IR diode 1, diode 2 or diode 3, Nd:YAG, telecom and fiber optics laser wavelengths, gallium arsenide GaAs, Ti:Sapphire, solid state YAG doped mid IR lasers such as Tm:YAG, ErYt:YAG, welding, CO(2) protection, UV curing, blue light, and excimer protection.

Laser windows can be custom cut, molded, and drilled to your CAD specifications for use in enclosures or machine windows. This laser safety window may provide protection from other laser wavelengths not listed. Please see Product Information for additional information about this filter or contact us.

In addition, filter specifications can be permanently engraved on the window. Custom sizes and shapes are available. This laser safety viewing window meets and/or exceeds US ANSI Z136 standards for use with lasers. Plus, this laser protective acrylic sheet has a 0.150″ Thickness.

Maximum Sheet Size 24″ X 36″

OD 5+ @190-399nm
OD 2+ @400-480nm
OD 2+ @750-1900nm
OD 3+ @800-1800nm
OD 5+ @830-1700nm
OD 6+ @1064nm
OD 5+ @10,600nm

VLT = 25%

The requested dimensions will be held to +/- 1/16″ tolerance. If you require a more precise tolerance, do not order on this site. Send your request to sales-team@phillips-safety.com for a quote.

For more options, check our Laser Windows collection.

Total Area (sq. in.)
Product Price

Description

The 830 DYAG is an acrylic laser safety window offering protection primarily from Full IR protection for alexandrite, also broad band A, IR diode 1, diode 2 or diode 3, Nd:YAG, telecom and fiber optics laser wavelengths, gallium arsenide GaAs, Ti:Sapphire, solid state YAG doped mid IR lasers such as Tm:YAG, ErYt:YAG, welding, CO(2) protection, UV curing, blue light, and excimer protection.

Laser windows can be custom cut, molded, and drilled to your CAD specifications for use in enclosures or machine windows. This laser safety window may provide protection from other laser wavelengths not listed. Please see Product Information for additional information about this filter or contact us.

In addition, filter specifications can be permanently engraved on the window. Custom sizes and shapes are available. This laser safety viewing window meets and/or exceeds US ANSI Z136 standards for use with lasers. Plus, this laser protective acrylic sheet has a 0.150″ Thickness.

Maximum Sheet Size 24″ X 36″

OD 5+ @190-399nm
OD 2+ @400-480nm
OD 2+ @750-1900nm
OD 3+ @800-1800nm
OD 5+ @830-1700nm
OD 6+ @1064nm
OD 5+ @10,600nm

VLT = 25%

The requested dimensions will be held to +/- 1/16″ tolerance. If you require a more precise tolerance, do not order on this site. Send your request to sales-team@phillips-safety.com for a quote.

For more options, check our Laser Windows collection.

Additional information

Weight 32 oz
Dimensions 12 × 8 × 8 in
Brand

Phillips Safety

Product Type

Laser Protective Acrylic Sheet

Color

Dark Green

Thickness

0.150″

Safety Standards

US ANSI Z136

VLT

25%
